Parabeam® Tripwire Rapid-deployment Beam NEW!

– top image shows the Tripwire Beamset Battery option

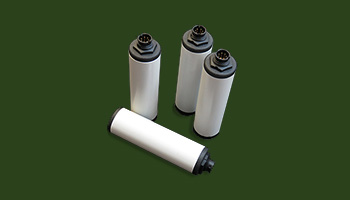

– bottom image shows an image of the battery
Download 4-Zone receiver User manual Click to Download

Product Highlights

Battery powered (Non-solar)
Invisible beam up to 250m long!
700-1400m Wireless Range
Waterproof external battery packs
Supplied with green alignment laser
3 Year Warranty, including batteries

4-Zone Receiver Highlights

Monitors up to 4 Tripwire (or smaller) beam-sets
Supports optional 4G text alerts
Adjustable alert “beep’ volume
Optional ‘police’ strobe lights or other deterrent

Will it work for me and how much?

Freephone NZ: 0508 727 223 / Australia: 1800 456 736

Send us an enquiry

Basic Overview

This new battery-only version of the Tripwire beam-sets is intended for rapid-deployment on construction sites, civil works sites, hazardous sites, large outdoor venues, or any temporary or constantly changing situation.

Parabeam® Tripwire beam-sets project a powerful detection beam over a distance of more than 260m (this version) allowing intruders or vulnerable people to be detected entering or wandering around on a site before they cause any damage or harm themselves.

Reduce the cost of security guards
Rechargeable 5000mAh waterproof battery packs (easily swapped)
Supplied with laser alignment tool
Beam distance selected by 10-position selector (35-250m range)
Connect a text messaging (SMS) module to the base receiver to send alert notifications to guard or monitoring company
Base receiver can drive “police” strobe lights (psychological deterrent)
Available only in XR-LoRa protocol (long wireless range version)

How the detection beam works …

The image below shows how the projected IR beam has a divergence angle that ensures the receiving beam-unit (called the “Beam-communicator”) is always “seeing the projected spot” unless poorly aligned. Some movement is tolerated because of the beam divergence. In reality the cone-shaped beam does not have a sharply defined boundary – the beam gradually weakens radially outward from the centre until it is too weak to be received.

Beam signal range

Simple 5 Step Beam installation procedure.

Simple 5 step instal process

3 important installation requirements …

(1) Flat ground.
Tripwire beam-sets work reliably over flat ground. Undulating ground can create detection anomalies where the detection beam is either too high, or too low to the ground.

(2) Rigid Mounting
If the beam-sets are going to be installed in the same location for a long time, we recommend mounting them on a solid fence, wall or on quality hardwood or laminated ply post such as Prolam so they remain aligned indefinitely.

(3) Mounting height
Beam-sets should be mounted between 1000-1200mm above ground (900mm minimum) to minimise “ground scatter”.

Specifications

Tripwire Series Beam Set
Type of Beam	Active Photo-electric Infra-red
Maximum Detection Beam distance	250m
Maximum Wireless range	Refer to XR series reference guide
Diagnostic reports	YES
Diameter of IR beam	65mm
Beam alignment method	Laser alignment tool
Modulation Type	Gaussian Frequency Shift Keying (GFSK) and LoRa protocols depending on version
Radio Frequency	458.550 MHz
RF Output Power	80-100mW
Average Power Consumption per Beam Unit	10mW
Battery Voltage	3.7V (charges to 4.2V approx.)
Battery Capacity	5000mAh
Protective Metal Housing	Powder-coated stainless steel
Weather Resistance	Poly-Carbonate, IP66 rated Enclosure Fully weather-proof Ant-proof
Dimensions – Millimetres	W80 \| D88 \| H120
Warranty	3 Years

Base Receiver
Two-way Radio Supervision	YES
On-board Diagnostics	YES
Maximum Number Of Supported Beam-Sets	4
Volume Adjustment	YES – Adjustable Volume (can also be muted)
Adjustable timed outputs	4-zone outputs
Number of timed outputs	4
Timed output range	4 – 120 seconds
External Pager output	YES
4G Communicator Port	YES
Frequency	458.550Mhz
Power Requirements	12V DC 500mA
Dimensions – Millimetres	W75 \| D119 \| H30
Warranty	3 Years
